Jergens 41729 Shoulder Screw 1 X 1.50
Hex .50 Socket Shoulder Screw
AISI 4140 steel, Rc 38-42 Heat Treated
Inventory: 4 available.
Jergens 41729 Shoulder Screw 1 X 1.50
Hex .50 Socket Shoulder Screw
AISI 4140 steel, Rc 38-42 Heat Treated
Jergens 41729 Shoulder Screw 1 X 1.50
Socket
Shoulder Screws are held to much closer tolerances than on standard
Stripper Bolts. The “B” dimension is always a plus to eliminate the
binding on movable plates. The “A” dimension is held closer for
bearing-type locating. You’ll get more positive holding power and
greater turning leverage. Ideal for all sliding mechanisms. Nylon
locking element is incorporated in all Jergens Shoulder Screws.
AISI 4140 steel is a low alloy steel containing chromium, molybdenum,
and manganese. It is widely used across numerous industries and is an
excellent material choice due to its toughness, high fatigue strength,
and abrasion and impact resistance. 38-42 Rc (target 40) is the standard
hardness and the most popular.

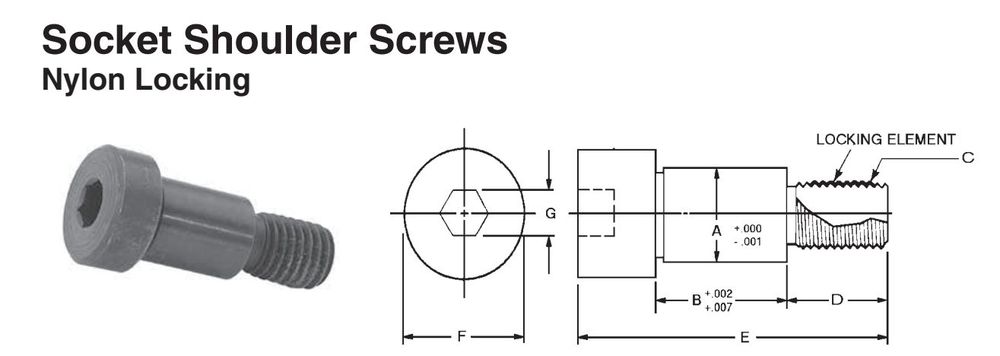

A: 0.999
B: 1 1/2
C: 3/4-10
D: 1
E: 3 1/8
F: 1 3/8
G: 1/2
Jergens_41729.pdf
IMPORTANT NOTE>
This unit is priced substantially lower here Seller Direct on our web
site then the selling price for the same unit we list elsewhere which
would have other listing fees, commission fees, payment fees incurred
from those web sites and added to the sale price.
It is entirely your choice of which outlet you wish to purchase from...
However,
If you want the same unit for less money WITHOUT ALL THE EXTRA
MIDDLEMAN FEES & COSTS ADDED then you can buy it here seller direct.
All the money you save will be your own to keep and use as you see fit.
Buy Now...Our Price $22.95
Once It's Gone... It's Gone!
|
Ships from USA not China.
USPS
12 oz
