GE Control Transformer 9T58L0045G09

Step Up Transformer 120 VAC 220/440

GE Control Transformer 9T58L0045G09

Inventory: 1 available.

GE Control Transformer 9T58L0045G09

Step Up Transformer 120 VAC 220/440

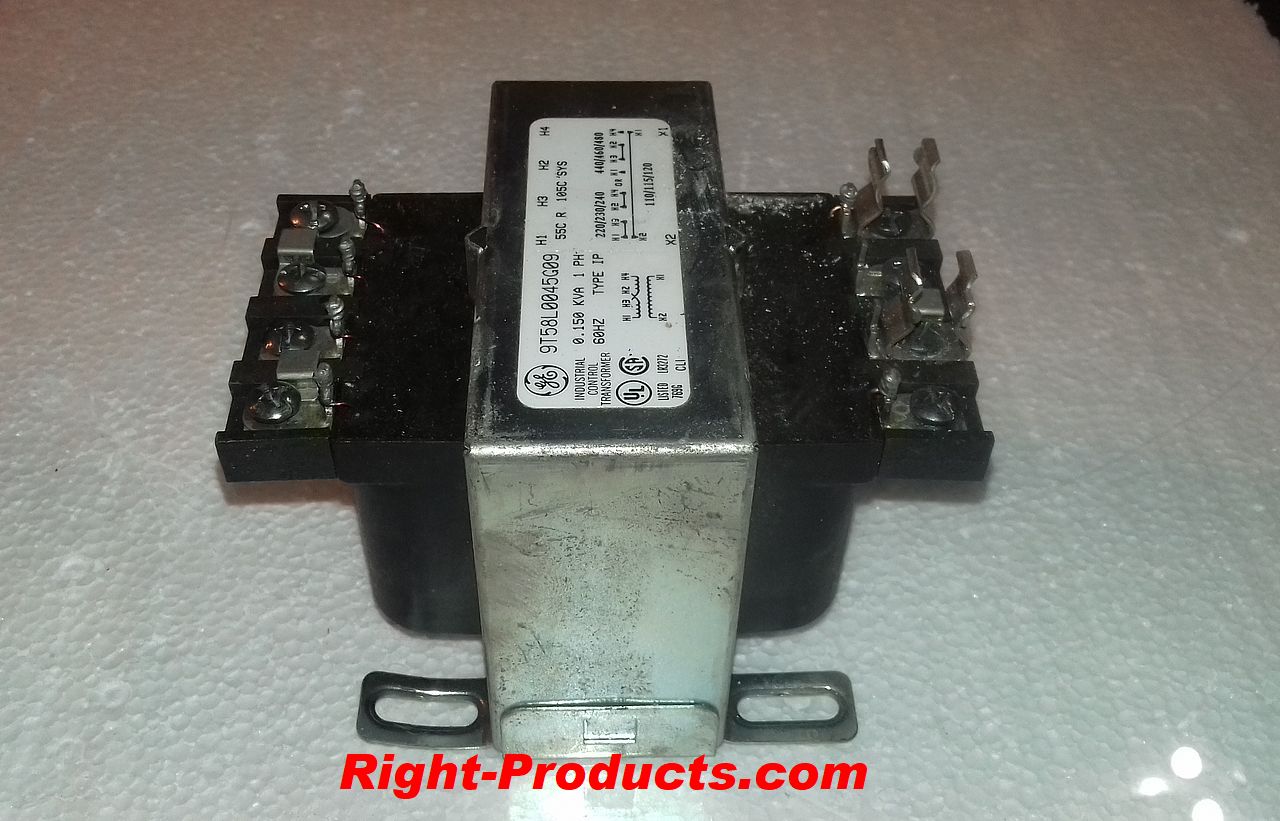

GE Control Transformer 9T58L0045G09 Type: IP

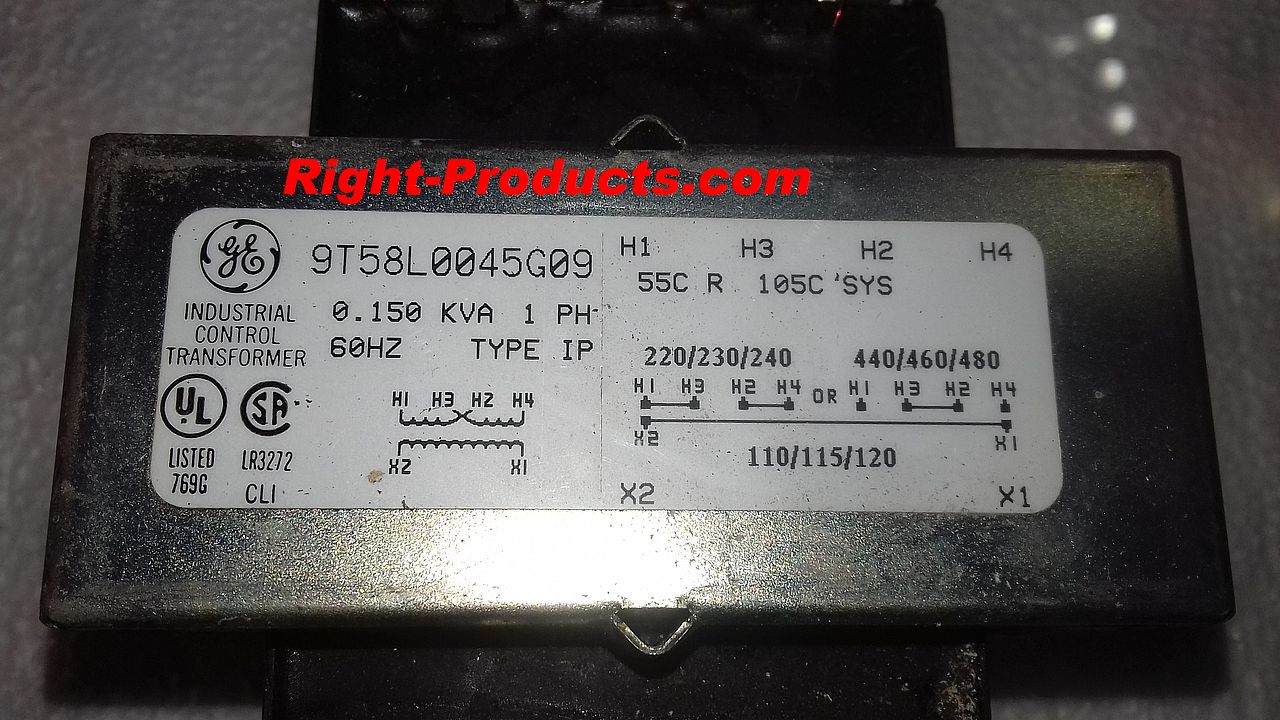

120 VAC Input, 1 ph, 60Hz, Output 0.150 KVA, 150VA, 220/440 VAC

Type IP transformers are core and coil units designed for machine tool,
industrial control, panelboard, and general purpose applications.

120 vac
H1 ----------------- H2
H4 ----H2/ \H3---H1

220 vac H1--H3 H2--H4
440 vac H1 H3--H2 H4

Calculations Volt Amps and fuse selection
@ 150 VA Using 220v Output
+ 150 va Transformer Volt Amps
/ 220 v Output Secondary
---------------
= 0.68 amps Primary Load max usable current limit
before overheating/destruction.
Primary Fuse: 2.04 amp
Secondary Fuse: 1.14 amp
Dual Element Slow-Blow Fuse

Calculations Volt Amps and fuse selection
@ 150 va Using 24v Output
+ 150 va Transformer Volt Amps
/ 440 v Output Secondary
---------------
= 0.34 amps Primary Load max usable current limit
before overheating/destruction.
Primary Fuse: 1.02 amp
Secondary Fuse: 0.57 amp
Dual Element Slow-Blow Fuse

Fuse Ratings Codes
Sizing Primary Fuses:
Primary Amps < 2, fuse size is 300% of rated primary current.

Sizing Secondary Fuses:
Secondary Amps < 9, fuse size is 167% of rated secondary current.

GEA-10548D.pdf

Unit was tested as working and being sold "As Is" with no warranties for you specific electronic needs or electrical abilities, faults or errors on installations, drivers, supply power or infinite other factors that may affect performance of the unit. Specification believed to be as accurate from mfg spec data posted.
Buyer is to determine suitability of their needs in items prior to purchase as all sales are final.

See shipping sales terms below.

IMPORTANT NOTE> This unit is priced substantially lower here Seller Direct on our web site then the selling price for the same unit we list elsewhere which would have other listing fees, commission fees, payment fees incurred from those web sites and added to the sale price.

It is entirely your choice of which outlet you wish to purchase from... However,
If you want the same unit for less money WITHOUT ALL THE EXTRA MIDDLEMAN FEES & COSTS ADDED then you can buy it here seller direct. All the money you save will be your own to keep and use as you see fit.

Buy Now...Our Price $39.00
Once It's Gone... It's Gone!

Surplus, Save Money.

Ships From: SW Chicago Area, IL, 60441

USPS

Note: Seller does its best to provide product information as available from manufactures but can not guarantee accuracy of researched generally available data.

Sale as per sites Sale Polices & General Terms of Sale
