Collamat 3610 Labeler, Labeling Machine Station
Top, Bottom, Side, and Wrap-Around labeling Capable Labeler
with double Conveyor system
Collamat 3610 Labeler, Labeling Machine Station
Inventory: 1 available.

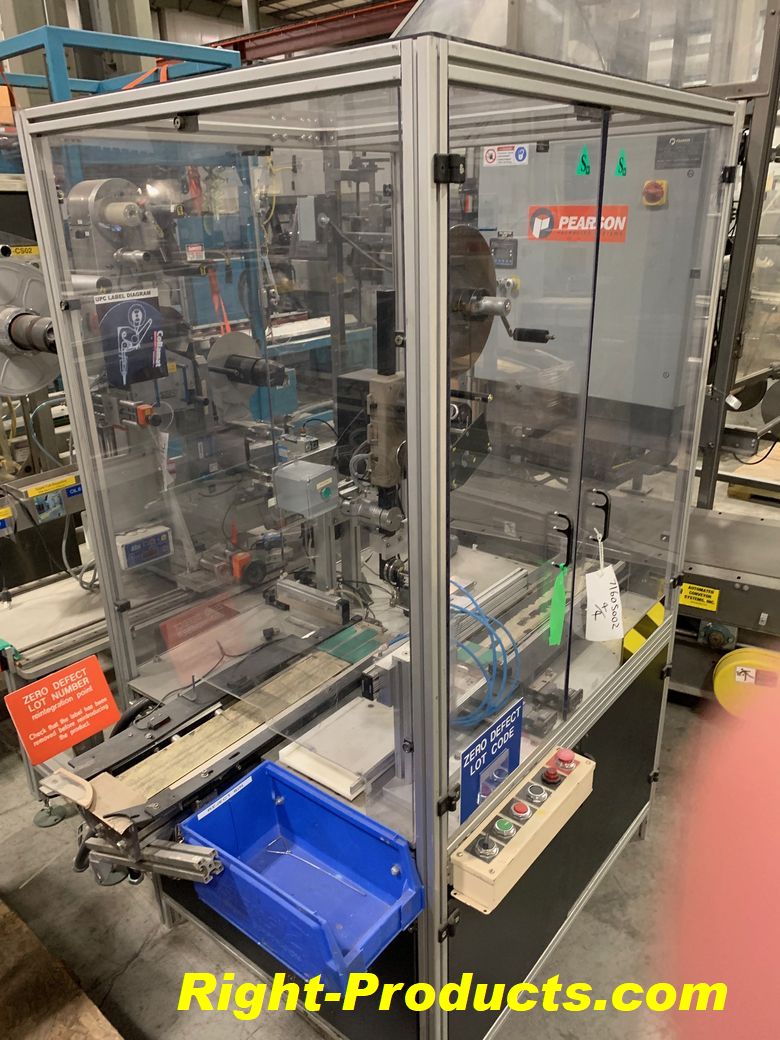

Collamat 3610 Labeler, Labeling Machine Station
Collamat 3600 Series in Custom Build
Product Conveyored Cabinet.

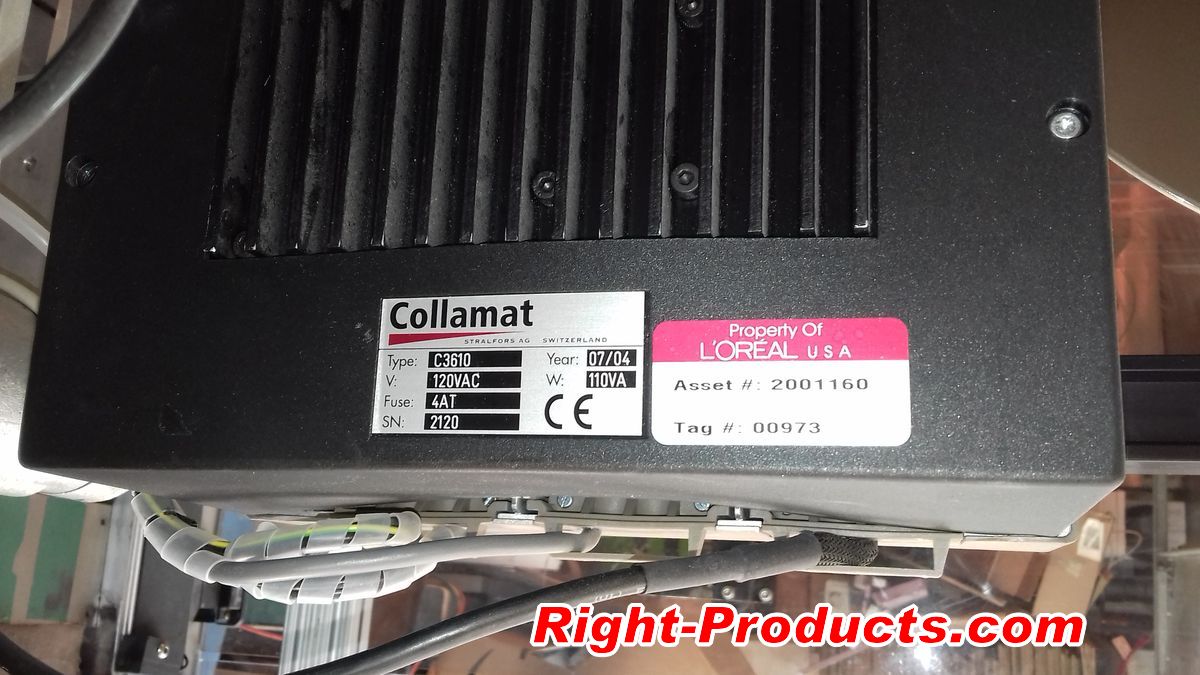

This Collamat 3600 (3610) labeling station came off a major brand
cosmetics company packaging line for use with another labeling machine
and large capping machine. The Collamat 3600 labeler is designed for
semi or fully automated applications and offers a great solutions for
smaller productions to long high speed runs with functionality and
reliability.

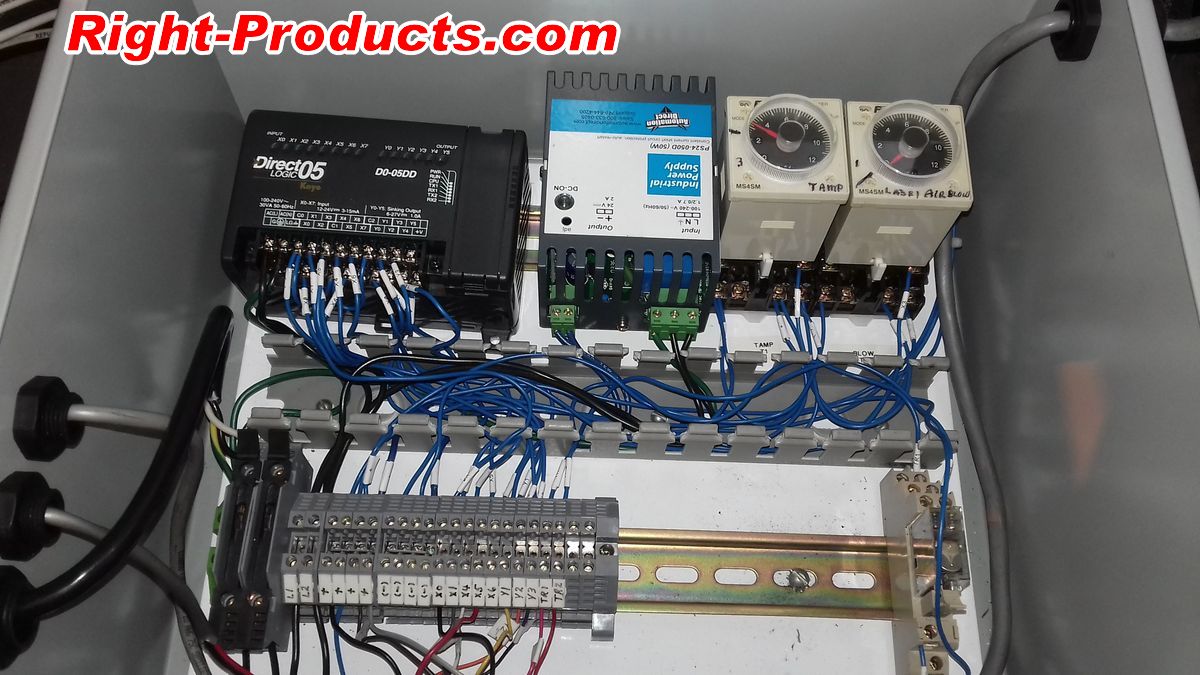

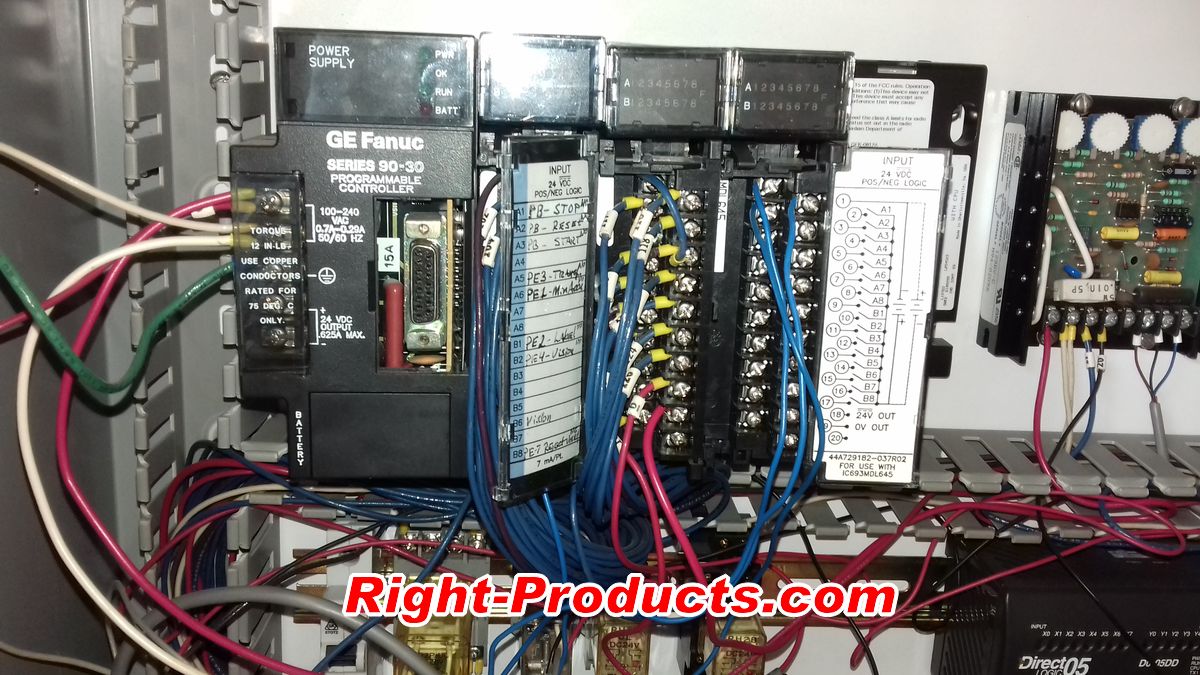

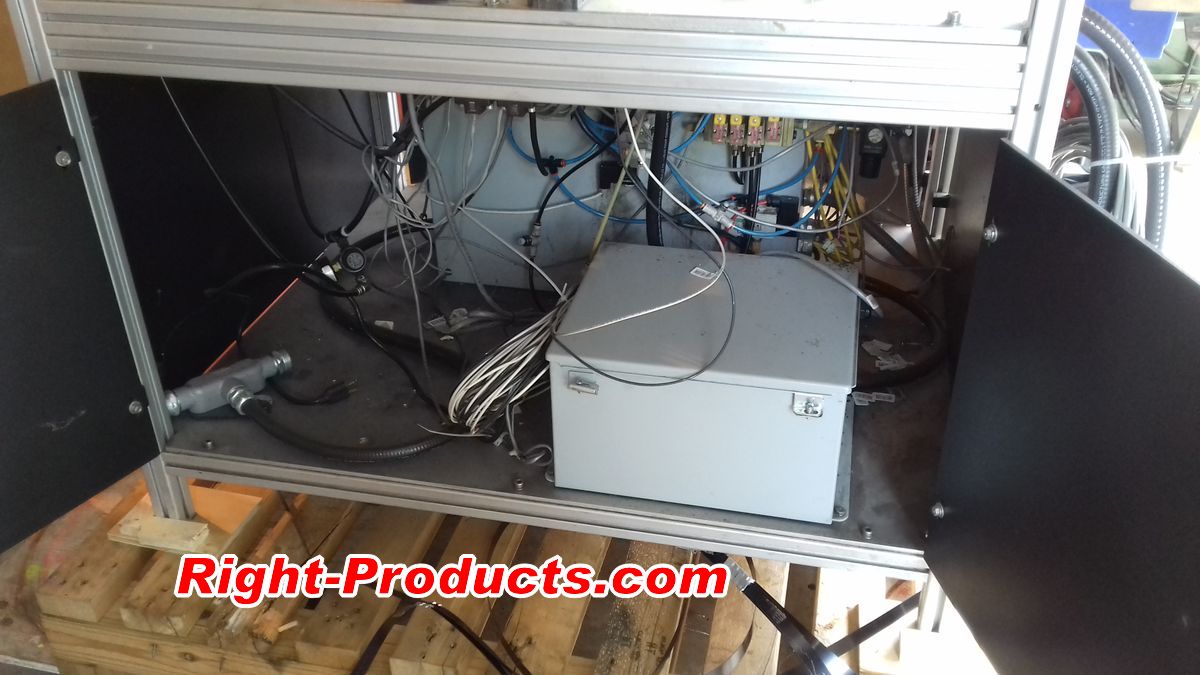

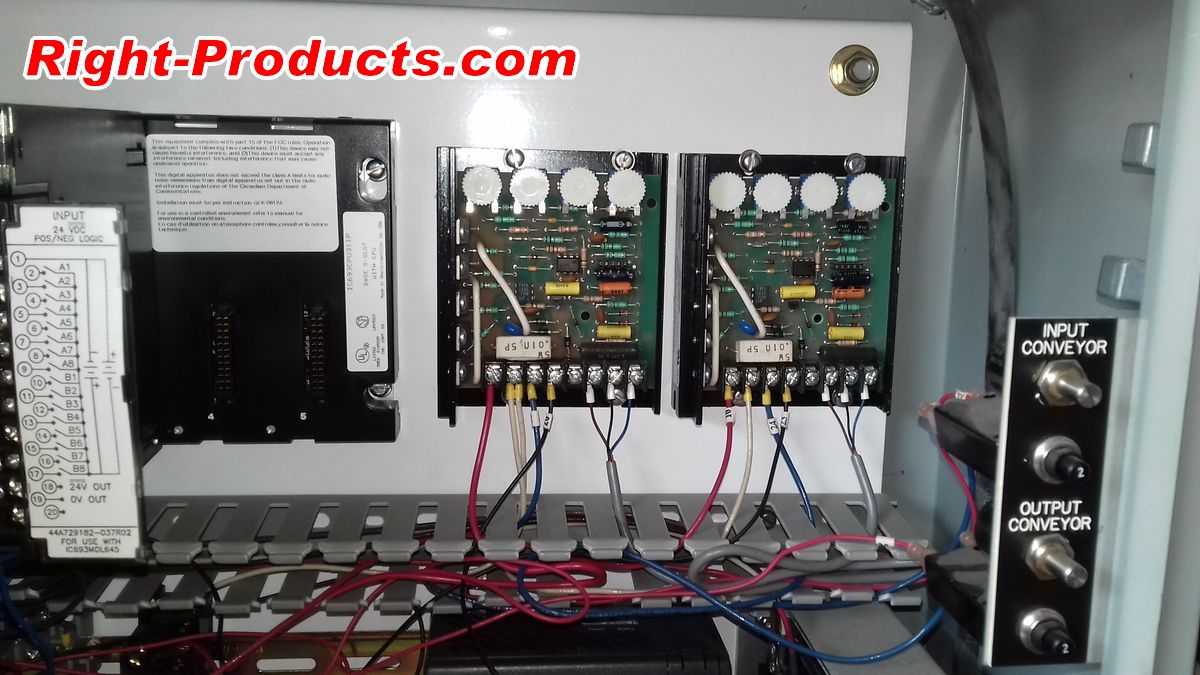

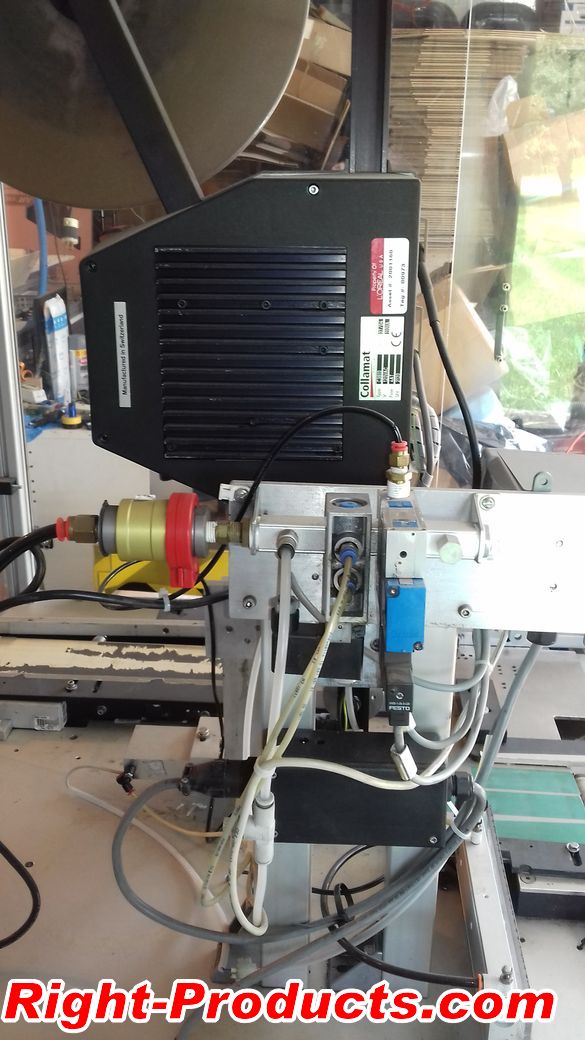

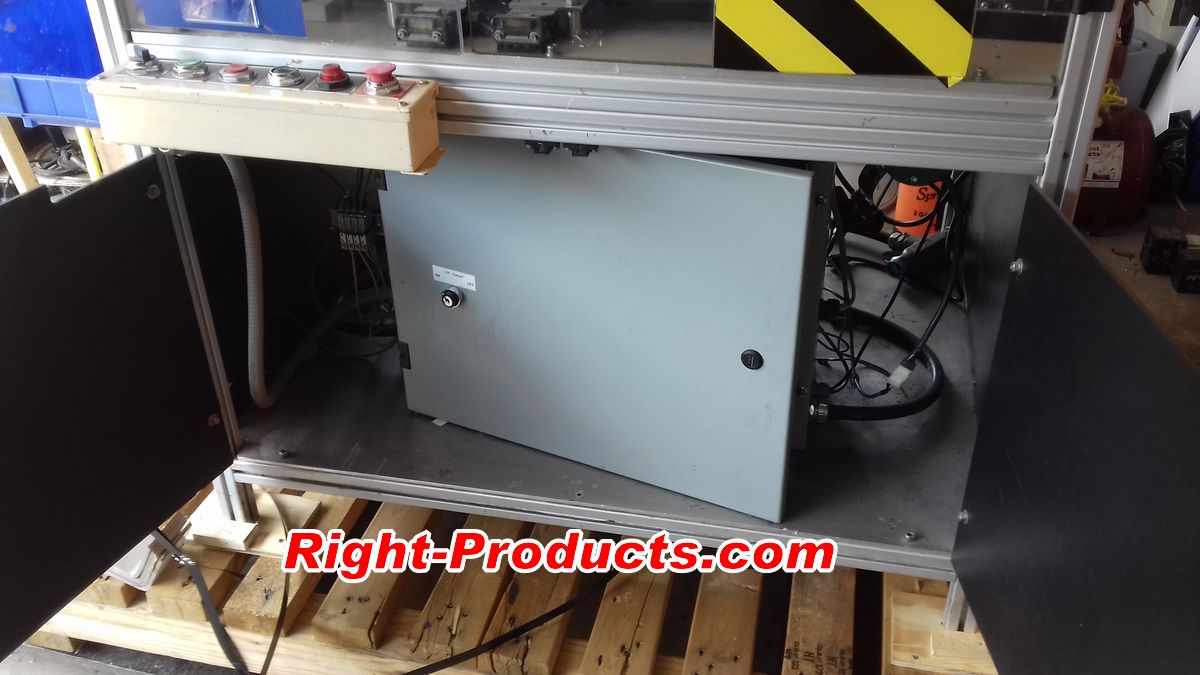

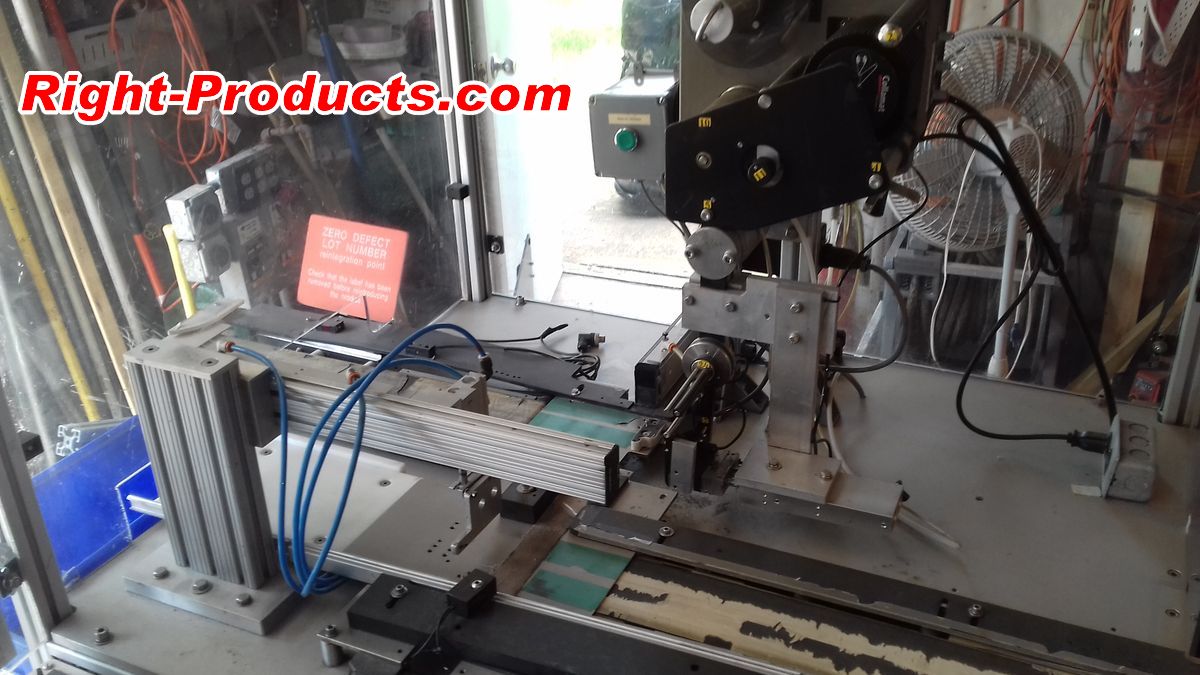

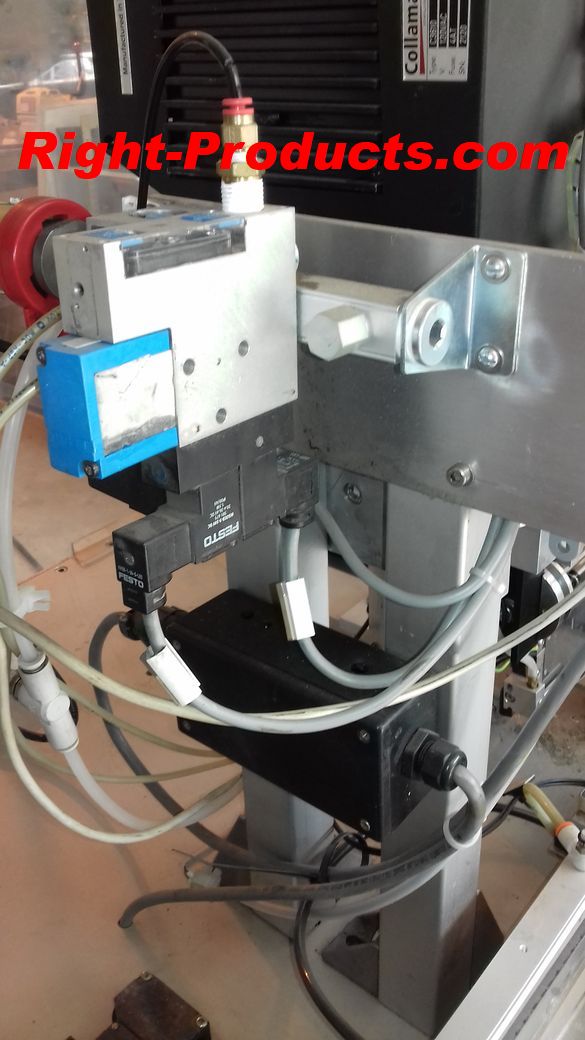

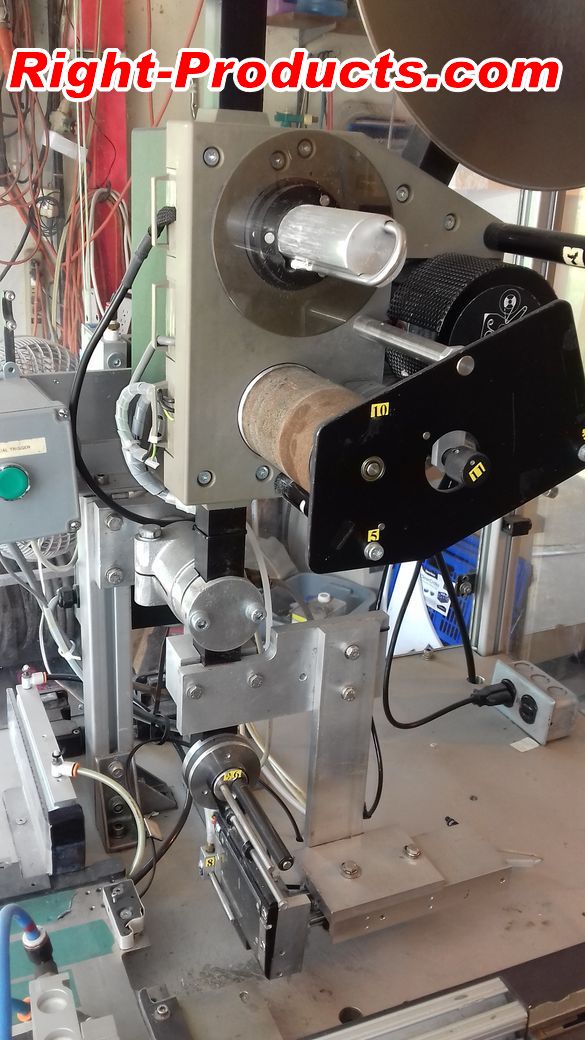

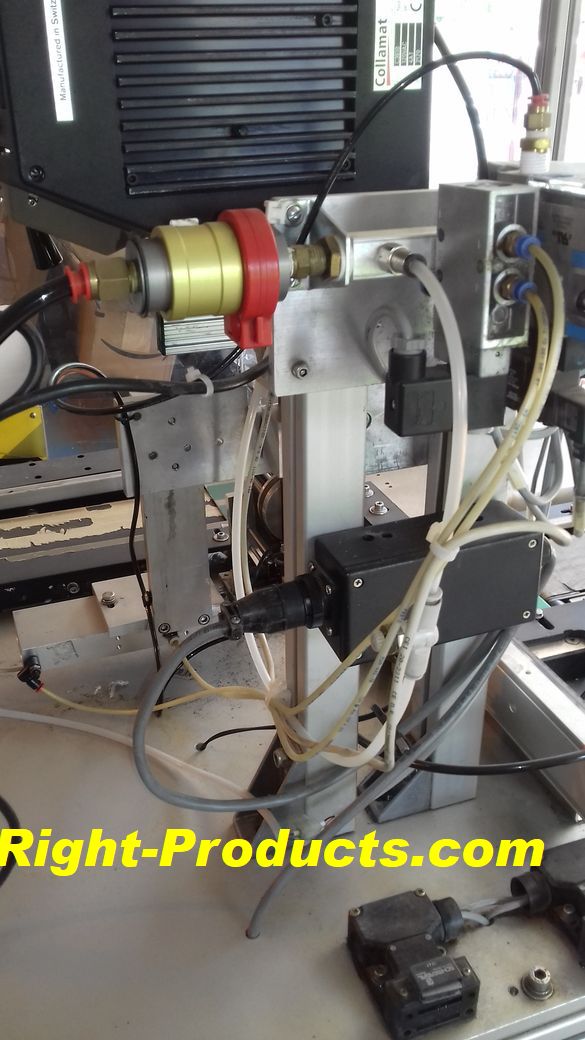

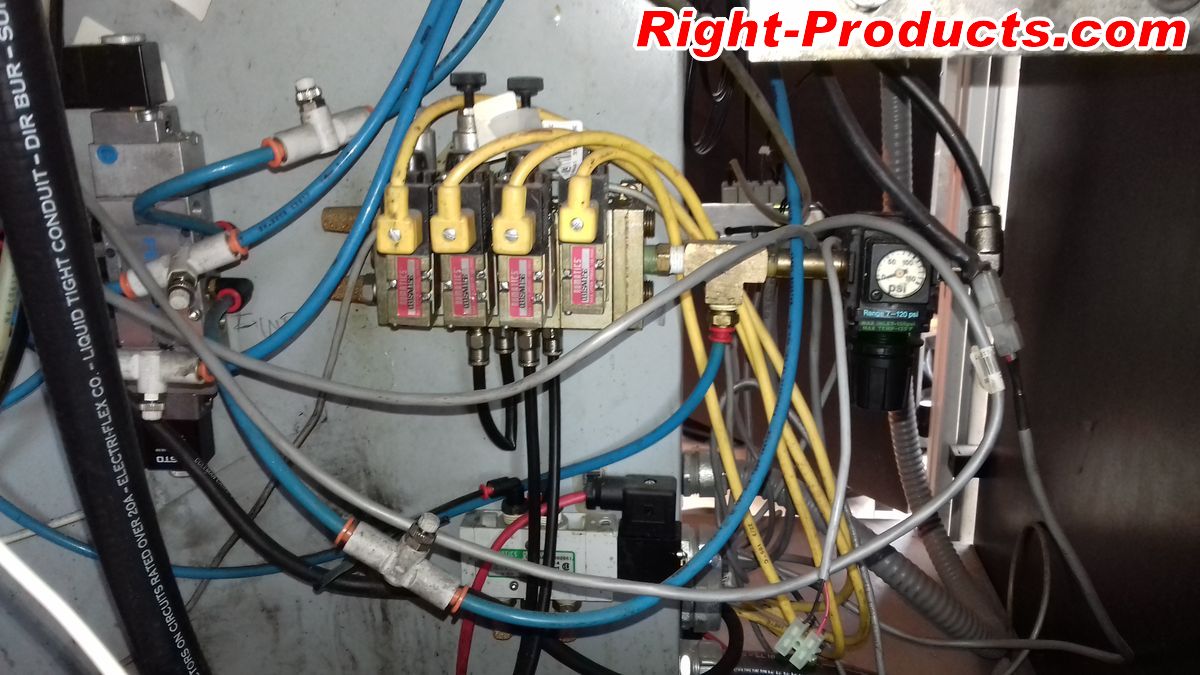

As you can see from the photos it is designed to do much more than place
labels on products with a wide variety of industrial sensors,
controllers, and movement mechanisms which include some sort of Zero
Defect capture and rejection system.
In review of Collamat Model 3610 Solutions pages, it shows this labeler
can be made to do top / bottom / side and wrap around labeling. Plus it
can communicate with additional labeler add-ons like printers, hot
stamps or ink jets. Which pretty much covers it all.
Collamat labeling systems are found in many fortune 500 production lines
as they are of high quality and reliability with many features. Also
Collamat has been making labeling machines since 1958 with a foot hold
in over 40 different countries. All this gives you the expertise and
support needed to help tailor this machine to most any of your labeling
needs.

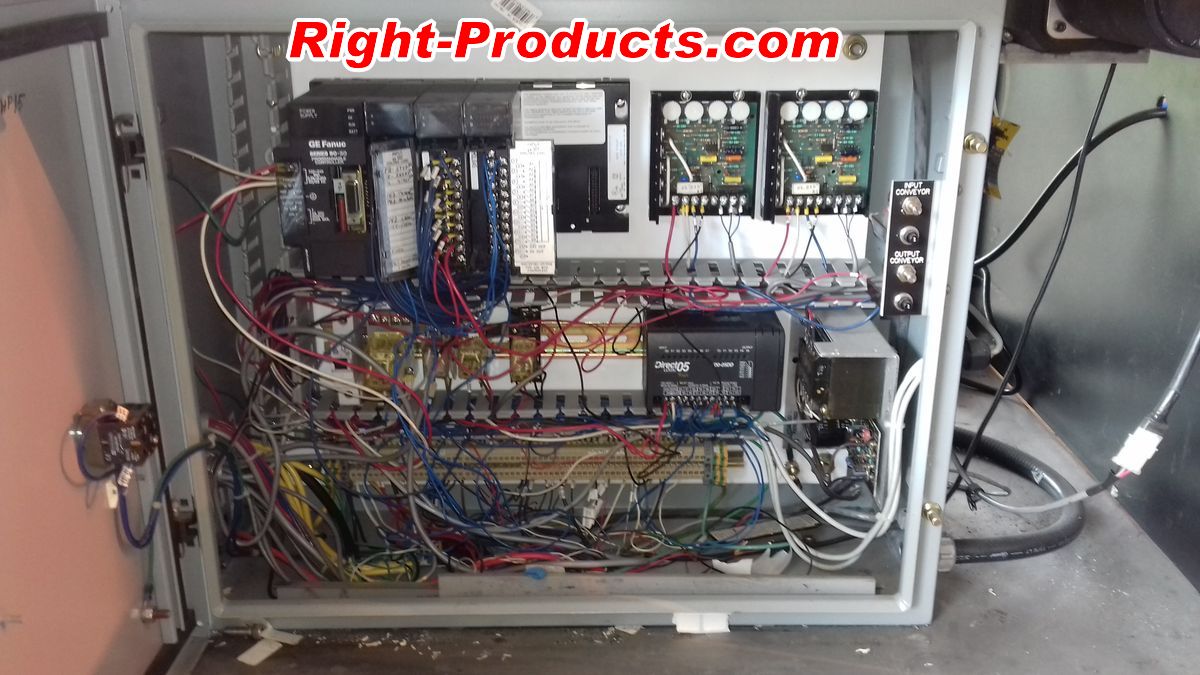

With all the system components on board this labeling station you have
the power to configure and control the labeling and product flow most
any way you want. And when your needs change you can change the setup to
match it again.
Some of the machine to machine connection signal wires were cut to
separate machines, so you will have to track to use or bypass circuits
for what you need, want, or to reconfigure to your production specs.
However the labeler when plugged in powers up fine. It is just awaiting
how you want it set up to use.
FEATURES (as per mfg data)
• Flexibility – Wide application range due to the availability of
various applicators for specific products
• Collamat® design – Controller, drive unit, rewinder, and control panel
integrated in one space-saving unit
• Expandable – Prepared for communication and installation of printers,
hot stamps or ink jets
• Modularity – Easy adaptation to new applications Easy operation –
Settings can easily be changed by 3 potentiometers
• Modular rail mounting – Easy plug-in expansion for options
• Fast set up – Set parameters for label scanner, predispensing, and
application speed – and you are ready to work
TECHNICAL DATA
Operational width: 95 mm (3 3/4 in.) or 160 mm (6 1/3 in.)
Max feeding speed: 20 m/min (65 ft/min)
Labeling accuracy: ± 1 mm (1/25 in.)
Min. label length: 10 mm (10/25 in.)
Max label reel diameter: 350 mm (14 in.)
Settings by potentiometer: Variable speed adjustment, label scanner
sensitivity, pre-dispensing

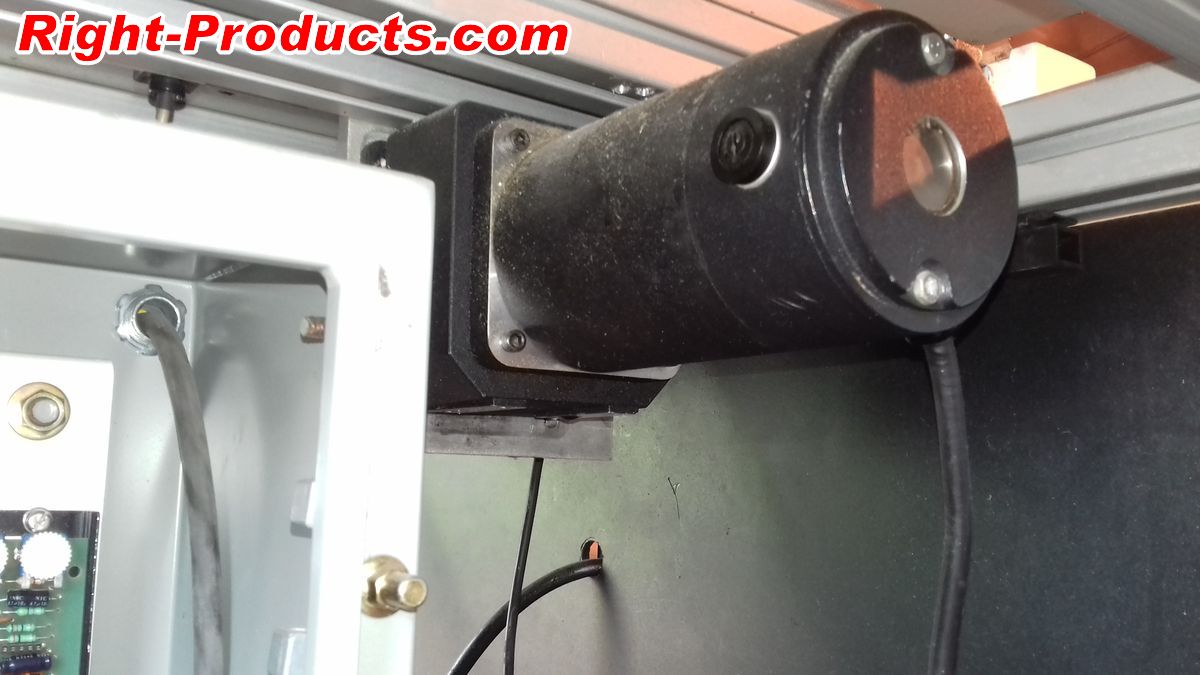

Drive: 2 phase stepping motor
Control: 16 bit microprocessor
Voltage: 115–230 V / 50–60 Hz / 110 VA
Approbation: CE/Gost
All data are indicative and may be subject to alteration
PDF Down Load -
Collamat_3600.pdf
PDF Down Load -
Collamat_3600_Technical.pdf
IMPORTANT NOTE>
This unit is priced substantially lower here Seller Direct on our web
site then the selling price for the same unit we list elsewhere which
would have other listing fees, commission fees, payment fees incurred
from those web sites and added to the sale price.
It is entirely your choice of which outlet you wish to purchase from...
However,
If you want the same unit for less money WITHOUT ALL THE EXTRA
MIDDLEMAN FEES & COSTS ADDED then you can buy it here seller direct.
All the money you save will be your own to keep and use as you see fit.
Buy Now...Our Price $2,400.00 PayPal Price
Once It's Gone... It's Gone!
No Money Down 6 Months to Pay - with
PayPal Credit
or
7 Day
Cash Price Sale $2,000.00
Save $400.00 Using Coinbase Payment Services
Unit was
tested as power up and being sold "As Is" with no warranties for you
specific electronic needs or electrical abilities, faults or errors on
installations, drivers, supply power or infinite other factors that may
effect performance of the unit. Specification believed to be as accurate
from Mfg. spec data posted. Buyer is to determine suitability of their
needs in items prior to purchase as all sales are final.
USA Inventory.
Southwest of Chicago
Shipping Best Way, Buyers Choice, Billed Separately
after Purchase
Note:
Seller does its best to provide product information as available from
manufactures but can not guarantee accuracy of researched generally
available data.
