Motor Starter Sprecher & Schuh KTA7-25S-1.6A

1 or 3 phase, 120v coil, 16A, Adj trip 10-16A

Motor Starter Sprecher & Schuh KTA7-25S-1.6A - Right-Products.com

Motor Starter Sprecher & Schuh KTA7-25S-1.6A

Inventory: 1 available.

New Motor Starter Sprecher Schuh 1 or 3 phase, 120v coil, 16A, Adj trip 10-16A

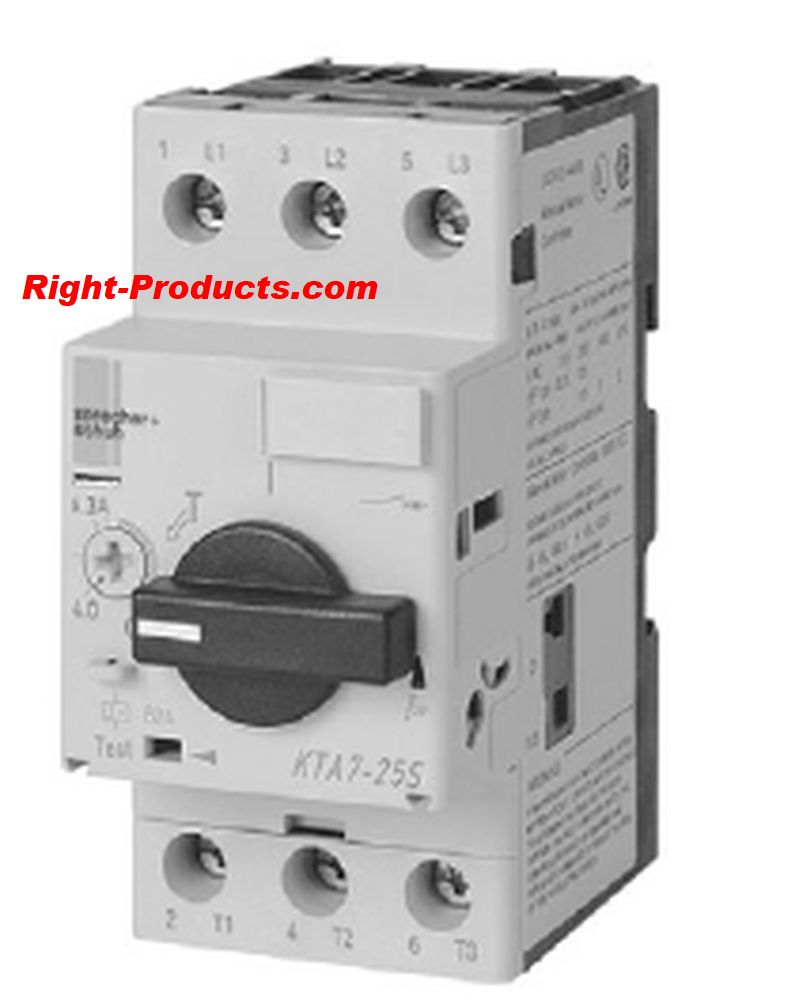

Sprecher + Schuh KTA7-25S-1.6A 3 pole Manual Motor Protector that is adjustable from 1.0 to 1.6 AMPS - Class 10 tripping characteristic and phase loss/overload protection - has rotary ON/OFF handle and mounts to DIN rail - Standard Interrupting Capacity

Country of Origin : Switzerland
Schedule B / H.T.S. : 8536.49.0080

List Price: $230.00
Our Price: $95.00

Sprecher + Schuhs KTA7-25S-0.16A manual motor controller family offers higher interrupting capacities (KAIC ratings) and improved Type 2 Coordination and Type E (life after short-circuit). The KTA7-25H/32H offers the option of higher short-circuit current ratings (SCCR) than the standard interrupting capacity of the KTA7-25S/32S Motor Controllers. KTA7 is also available in frames up to 45A. KTC7 can be used with High Efficiency motors. KTB7 Magnetic Only controllers can be combined with CA7 contactors and CEP7 overloads to provide additional features.

Every KTA7 device is individually calibrated at the factory for the smallest and largest current it can handle. When coupled with automatic ambient temperature compensation over a range of -25 C to +60 C, very accurate thermal overload protection is obtained. In addition, the KT7 is a Class 10 device it trips within 10 seconds under locked rotor conditions (6 x FLA). This better protects todays T-Frame motors.

This unit is ready for shipment as shown See shipping sales terms below.

IMPORTANT NOTE> This unit is priced substantially lower here Seller Direct on our web site then the selling price for the same unit we list elsewhere which would have other listing fees, commission fees, payment fees incurred from those web sites and added to the sale price.

It is entirely your choice of which outlet you wish to purchase from... However,
If you want the same unit for less money WITHOUT ALL THE EXTRA MIDDLEMAN FEES & COSTS ADDED then you can buy it here seller direct. All the money you save will be your own to keep and use as you see fit.

Buy Now...Our Price $95.00
Once It's Gone... It's Gone!

Surplus, Save Money.

Ships From: SW Chicago Area, IL, 60441
Continental USA Only
UPS Ground

Note: Seller does its best to provide product information as available from manufactures but can not guarantee accuracy of researched generally available data.

Sale as per sites Sale Polices & General Terms of Sale
